Application: Automatic Solar Cell String Inspection

1. Matched with tabber stringer, and can achieve synchronous inspection.

2. Easy to operate, without additional manpower cost.

3. Automatically detect the appearance defects of cells, including offset, edge defects, corner defects, dirt, scratches, spacing, etc.

4. Use 10 million high-definition industrial cameras, and automatically save NG pictures

5. Mark and display defects on the image interface in real time

Functions:

1. Color difference: mainly identify color of the cell

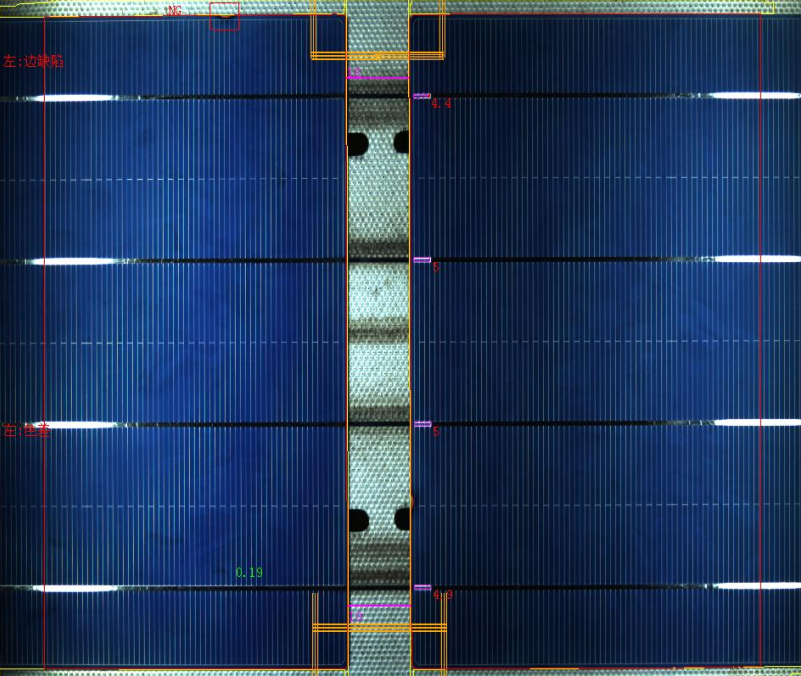

2. Edge inspection: identify and detect the edge breakage exceeding a certain area or depth

澳新国际

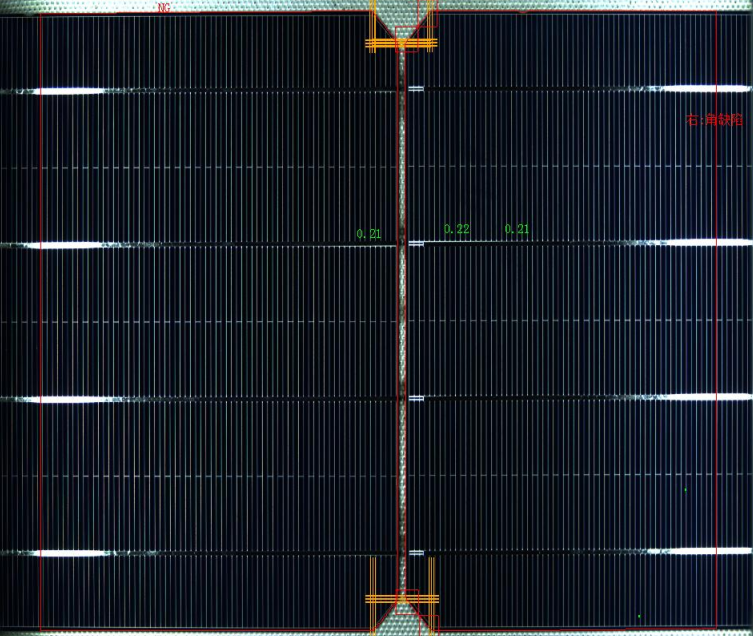

3. Angle inspection: identify and detect angle breakage

澳新国际

 4. Spacing: quantify the distance between the two cells

澳新国际

5. Straightness: detect position deviations of all the cells of one string

6. Maximum offset: detect position deviations of welding belt

澳新国际

7. Solder joints: detect position deviations of the first solder joint

澳新国际

8. Scale breakage: detect scale breakage

澳新国际

9. Dirt: detect dirt on the cell

澳新国际

10. Scratch: detect scratch on the cell
